NEW QUESTION 1
Refer to the exhibit.

An engineer must Implement a traceroute operation to verity the R1 point-to-multipoint LSP connections. The traceroute operation must return all labels and hop-by-hop IP addresses for destinations 10.20.1.1. 10.30.0.1, and 10.40.0.1. and the maximum number of hops is 4. Which command must be executed to meet the requirements?

• A. traceroute mpls traffic-eng tunnel-mte 10 ttl 4
• B. traceroute mpls traffic-eng tunnel-mte 10 responder-id 10.40.0.1
• C. traceroute mpls ipv4 10.30.0.1/32 fee-type generic
• D. traceroute mpls ipv4 10.20.0.1/32 ttl 4

Answer: A

NEW QUESTION 2

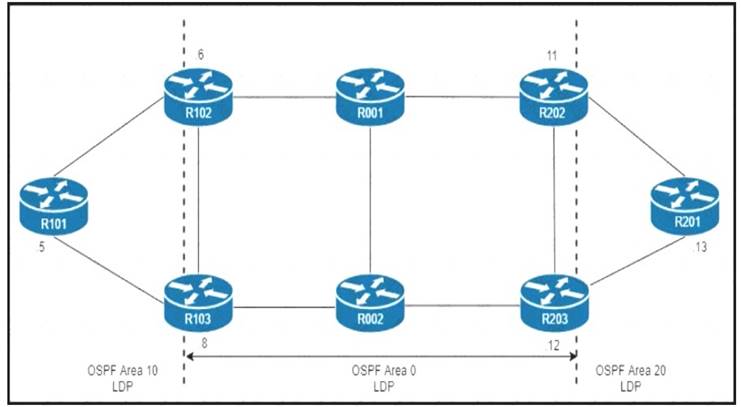

Refer to the exhibit.

R101 is peering with R102 and R103, and R201 is peering with R202 and R203 using iBGP Labeled Unicast address families. The OSPF area 0 border routers are in a full iBGP Labeled Unicast mesh, and VPNv4 routes are exchanged directly between PE routers R101 and R201 through iBGP Which address family-level configuration must be applied on ABR R102 on ABR R102 to support a Unified MPLS routing architecture with partitioned IGP domains?

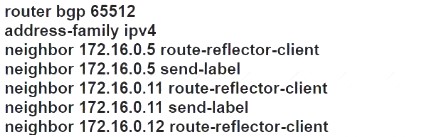

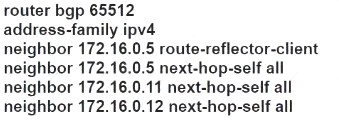

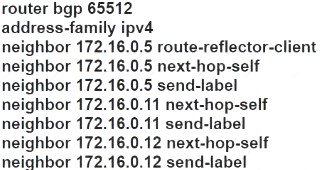

A)

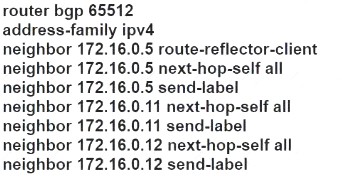

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

NEW QUESTION 3

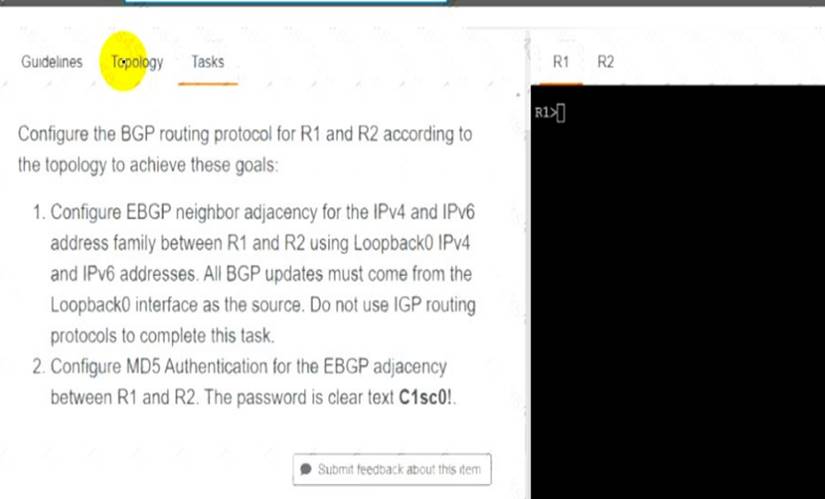

SIMULATION 4

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 4

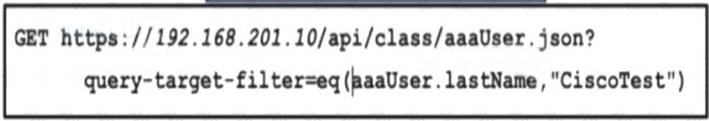

Refer to the exhibit.

An engineer configured several network devices to run REST APIs. After testing, the organization plans to use REST APIs throughout the network to manage the network more efficiently. What is the effect if this script?

• A. It returns an AAA users with the last name CiscoTest.
• B. It creates a class map named aaauser with traffic tagged from AAA.
• C. It queries the local database to find a user named aaaUser.Json
• D. It adds the user CiscoTest to the AAA database located at 192.168.201.10.

Answer: A

NEW QUESTION 5

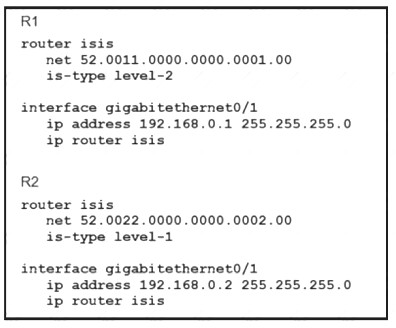

Refer to the exhibit:

Which statement about the status of the neighbor relationship between R1 and R2 is true?

• A. The neighbor relationship is down because the two routers are configured with different area types
• B. The neighbor relationship is down because the two routers are in the same subnet.
• C. The neighbor relationship is up because R2 is level 1 and level 2 router.
• D. The neighbor relationship is down because R2 is operating as a Level 1 router and the two routers are in different area

Answer: D

NEW QUESTION 6

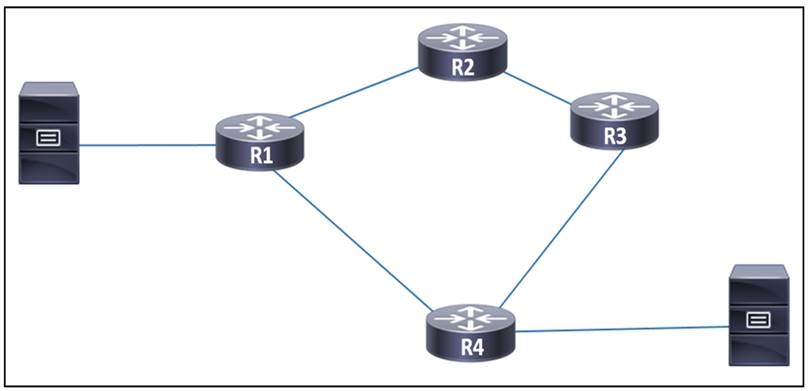

Refer to the exhibit.

A network engineer observed congestion between routers R1 and R4, which are connected on a point-to-point link. Two servers that reside on networks on R1 and R4 generate heavy traffic between them with most traffic going from R4 to R1. To improve overall performance, the engineer wants to drop inbound packets that exceed a configured threshold, without disrupting traffic that passes from R4 to R3. Which action must the engineer take to resolve the issue?

• A. Implement traffic policing to drop packets that exceed the given threshold.
• B. Implement FIFO to queue excess traffic for transmission when bandwidth is available.
• C. Implement traffic shaping to drop excess packets.
• D. Implement a service policy in the outbound direction on each interface on the link to tag traffic exiting each router.

Answer: A

NEW QUESTION 7

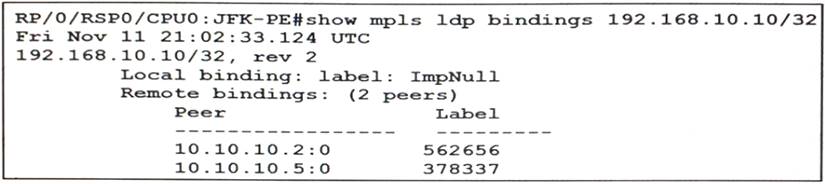

Refer to the exhibit:

After implementing a new design for the network, a technician reviews the pictured CLI output as part of the MOP.
Which two statements describe what the technician can ascertain from the ImpNull output? (Choose two.)

• A. Label 0 is used for the prefix displayed but will not be part of the MPLS label stack for packets destined for 192 168.10.10.
• B. Ultimate Hop Popping is in use for the prefix displayed.
• C. Label 0 is used for the prefix displayed and will be part of the MPLS label stack for packets destined for 192.168.10.10
• D. Penultimate Hop Popping is in use for the prefix displayed
• E. Label 3 is in use for the prefix displayed and will be part of the MPLS label stack for packets destined for 192.168.10.10

Answer: DE

NEW QUESTION 8
After implement MPLS protocol for multiple VRFs on a single Cisco device, the engineer notices all VRFs on the router still do to not LDP session protection feature enabled. Which configuration must the engineer apply to enable the LDP session protection feature FOR LDP neighbors within each VRF?

• A. Configure LDP session protection globally on the device only.
• B. Configure LDP session protection globally on the device and on each neighbor that requires session protection.
• C. Configure LDP session authentication on the device to enable LDP session protection on each VRF automatically.
• D. Configure LDP session protection within the individual VRFs.

Answer: D

NEW QUESTION 9
Which feature describes the adjacency SID?

• A. It applies only to point-to-point links.
• B. It applies only to multipoint links
• C. It is locally unique
• D. It is globally unique.

Answer: C

NEW QUESTION 10

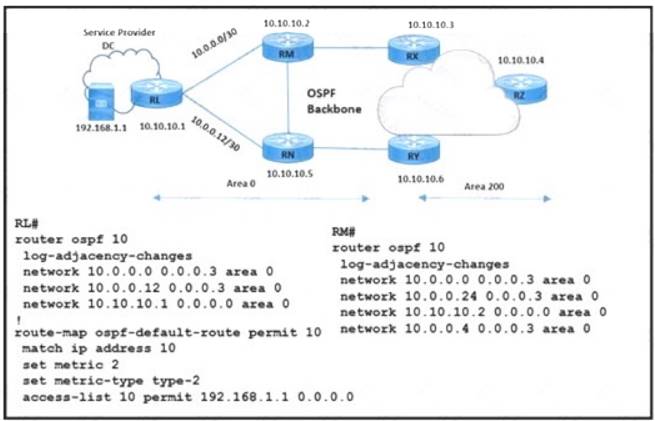

Refer to the exhibit.

The operations team for a service provider network is implementing a route map policy. OSPF area 0 should originate the default route with a type 2 metric of 2 when the application server on the connected interface (192.168.1.1) is up. Routers RL and RM have set up OSPF peering with other adjacent routers. Which action meets this requirement?

• A. Apply default-information originate route-map ospf-default-route on router RL.
• B. Configure distribute-list route-map ospf-default-route out on router RM.
• C. Configure distribute-list route-map ospf-default-route out on router RL.
• D. Apply default-information originate route-map ospf-default-route on router RM.

Answer: D

NEW QUESTION 11

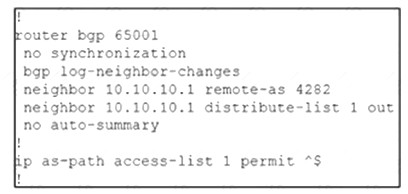

Refer to the exhibit.

An engineer is reviewing the BGP configuration. Which routes must be advertised to 10.10.10.1

• A. Local routes are permitted, and routes from other ASNs are denied.
• B. All routes whether local or from other ASNs are denied.
• C. Local routes are denied, and routes from other ASNs are permitted.
• D. All routes whether local or from other ASNs are permitted.

Answer: D

NEW QUESTION 12
What is the function of the FEC field within the OTN signal structure?

• A. It allows the sending devices to apply QoS within the OTN forwarding structure.
• B. It allows source nodes to discard payload errors before transmitting data on the network.
• C. It allows receivers to correct errors upon data arrival.
• D. It allows deep inspection of data payload fields.

Answer: C

NEW QUESTION 13

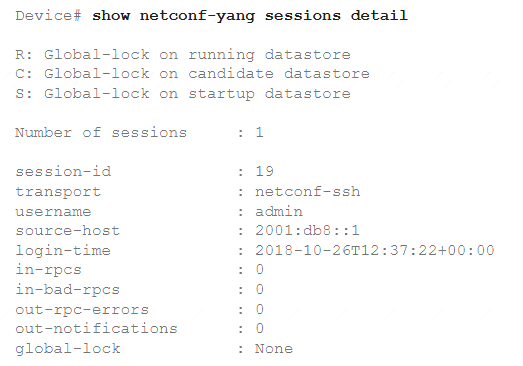

After a possible security breach, the network administrator of an ISP must verify the times that several different users logged into the network. Which command must the administrator enter to display the login time of each user that activated a session?

• A. show netconf-yang sessions detail
• B. show netconf-yang datastores
• C. show platform software yang-management process
• D. show netconf-yang sessions

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/prog/configuration/167/b_167_programmability_cg/configur

NEW QUESTION 14
What is the characteristic of the Tl-LFA?

• A. It guarantees a loop-free path for all interfaces in the OSPf- super backbone .
• B. It applies on each area and instance and makes all the interfaces inherit the configuration
• C. It guarantees a loop-free path for all areas configured m OSPF
• D. It applies only on the instance and makes at the interfaces inherit the configuration

Answer: A

NEW QUESTION 15

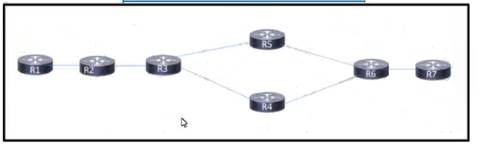

Refer to the exhibit. After a networking team configured this MPLS topology, the supervisor wants to view MPLS labels to verify the path that packets take from router R1 to router R7 The team already Issued an ICMP ping to verify connectivity between the devices. Which task must the team perform to allow the supervisor to view the label switch path?

• A. Configure MPLS TE to display the labels in the stack between the head and tail-end routers
• B. Implement MPLS LDP to assign labels to all the routes in the transit path.
• C. Configure MPLS LDP Sync to sync labels from the routing table to the MPLS forwarding table.
• D. Implement MPLS OAM to display the labels for each hop along the path

Answer: D

NEW QUESTION 16
An ISP Is Implementing end-to-end fault monitoring for a customer based on the IEEE 802.3ah standard. The solution must detect when 15 or more corrupted Ethernet packets arrive within 10 ms and stop propagating traffic through the ISP backbone network or to the customer side. Which configuration must the ISP engineer apply?

• A. ethernet oam link-monitoring enableethernet oam link-monitor crc-errors ingress time-window 10ethernet oam link-monitor crc-errors ingress threshold high 15 ethernet oam link-monitor crc-errors egress time-window 10 ethernet oam link-monitor crc-errors egress threshold high 15 ethernet oam link-monitor high-threshold action shutdown-interface
• B. ethernet oam link-monitoringethernet oam link-monitor receive-crc window 15 ethernet oam link-monitor receive-crc threshold high 10ethernet oam link-monitor high-threshold action disable-interface
• C. ethernet oamethernet oam link-monitor receive-crc window 10 ethernet oam link-monitor receive-crc threshold high 15 ethernet oam link-monitor transmit-crc window 10 ethernet oam link-monitor transmit-crc threshold high 15ethernet oam link-monitor high-threshold action errordisable-interface
• D. ethernet oam link-monitoring global enableethernet oam link-monitor receive crc-errors period 15 ethernet oam link-monitor receive crc-errors limit 15 ethernet oam link-monitor transmit crc-errors period 10 ethernet oam link-monitor transmit crc-errors limit 15 ethernet oam link-monitor limit action error-disable interface

Answer: C
